Name: Marine Solid-State Battery
Nominal Voltage: 38.4V Voltage/Mould
Nominal Capacity: 460Ah (17664Wh)/Mould
DNV Certified: Meets strict marine safety standards
High Voltage Ready: Supports 400V/700V/1000V systems
Long Service Life: 3,500 cycles with 80% capacity retention
IP67 Protection: Waterproof and corrosion resistant
Flexible Configuration: 22S10P compatible
Custom Shapes: Fits any ship space
Easy Setup: Plug and play installation
Product Description
Customized appearance
Customizable corporate logo spray painting
Smart warning
APP push notifications for overpressure, overcurrent, and abnormal temperature
High safety performance
No fire or explosion in case of puncture or crushing
No more range anxiety
460Ah capacity supports continuous long-term operation of golf carts

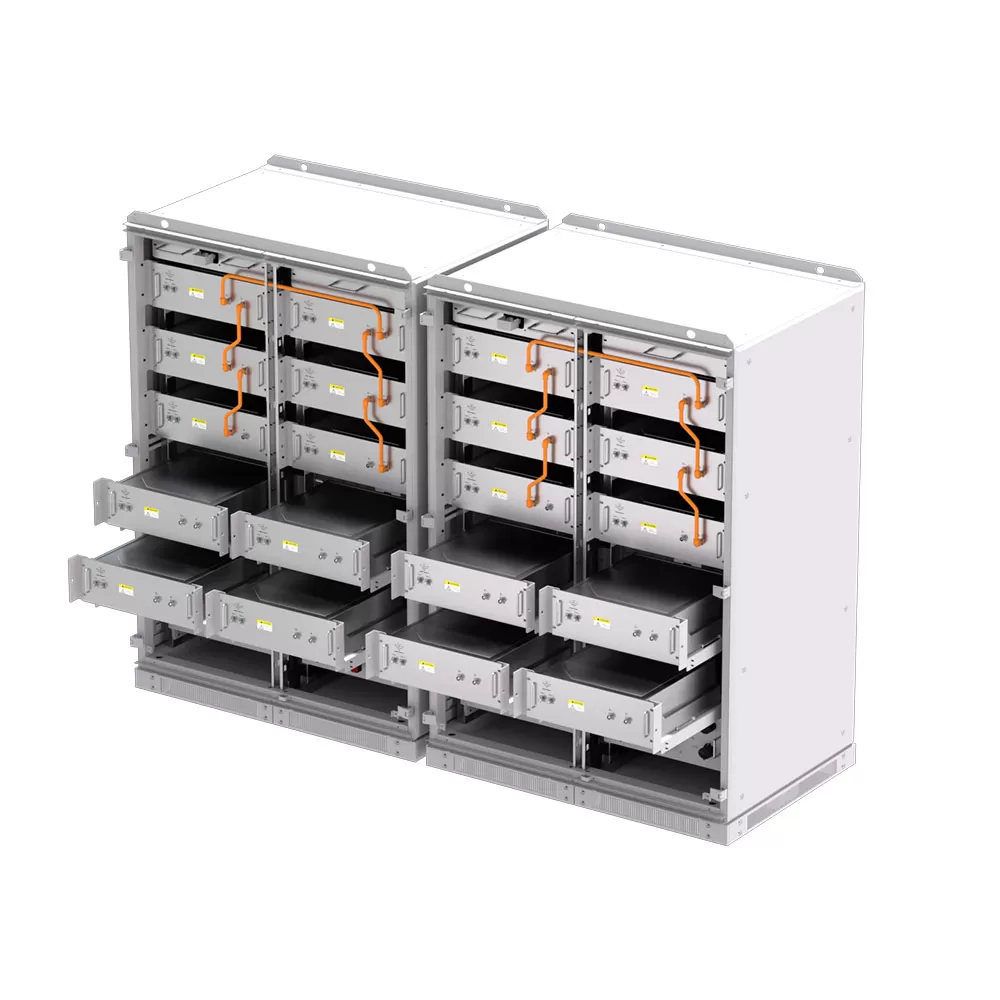

Introducing our 400V 460Ah solid state battery, 700V 460Ah solid state electrical boat battery, and 1000V 460Ah marine battery series (Model: MARINE-SS460), engineered to revolutionize marine electrification. These DNV-certified solid state batteries deliver unrivaled power density, saltwater resilience, and safety for commercial vessels, luxury yachts, and high-performance electric boats. With a 460Ah capacity across 400V, 700V, and 1000V configurations, they eliminate range anxiety, reduce maintenance costs, and meet the rigorous demands of maritime environments—setting a new standard for marine energy storage.
| Specification | 400V 460Ah | 700V 460Ah | 1000V 460Ah |
|---|---|---|---|
| Nominal Voltage | 400V | 700V | 1000V |
| Capacity | 460Ah (184kWh) | 460Ah (322kWh) | 460Ah (460kWh) |
| Energy Density | 380Wh/kg | 380Wh/kg | 380Wh/kg |
| Continuous Discharge Current | 920A (2C) | 920A (2C) | 920A (2C) |
| Peak Discharge (10s) | 1840A (4C) | 1840A (4C) | 1840A (4C) |
| Cycle Life | 6,000+ cycles @ 80% DOD | 6,000+ cycles @ 80% DOD | 6,000+ cycles @ 80% DOD |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) | -4°F to 140°F (-20°C to 60°C) | -4°F to 140°F (-20°C to 60°C) |
| Certifications | DNV GL, IEC 62133, UL 1973 | DNV GL, IEC 62133, UL 1973 | DNV GL, IEC 62133, UL 1973 |
| Protection Features | IP67 waterproof; overcharge/short-circuit/thermal protection | IP67 waterproof; overcharge/short-circuit/thermal protection | IP67 waterproof; overcharge/short-circuit/thermal protection |
Supports DC fast charging: 0–80% in 45 minutes with compatible marine chargers. Integrates seamlessly with boat management systems via CAN bus, allowing real-time monitoring of state-of-charge, temperature, and health via a dashboard or mobile app.
The modular design allows easy scaling: connect multiple units to increase capacity for longer voyages or higher power demands. With 6,000+ cycles, these batteries outlast traditional marine batteries by 3–5 times, delivering decades of reliable service.
Works with diesel generators in hybrid setups, storing excess energy to reduce engine runtime by 60%—lowering noise, emissions, and maintenance costs.
Dedicated to providing the optimum materials and solutions regarding to different projects
Each battery can be customized in terms of voltage, capacity, dimensions, and enclosure design, ensuring optimal performance and compatibility for each specific use case.
